Template and Processor Access

  1. Content Template - Suitable for all below configuration

  2. To unlock the control processor hold down the "ESC" and press in the Menu wheel for 4 seconds.

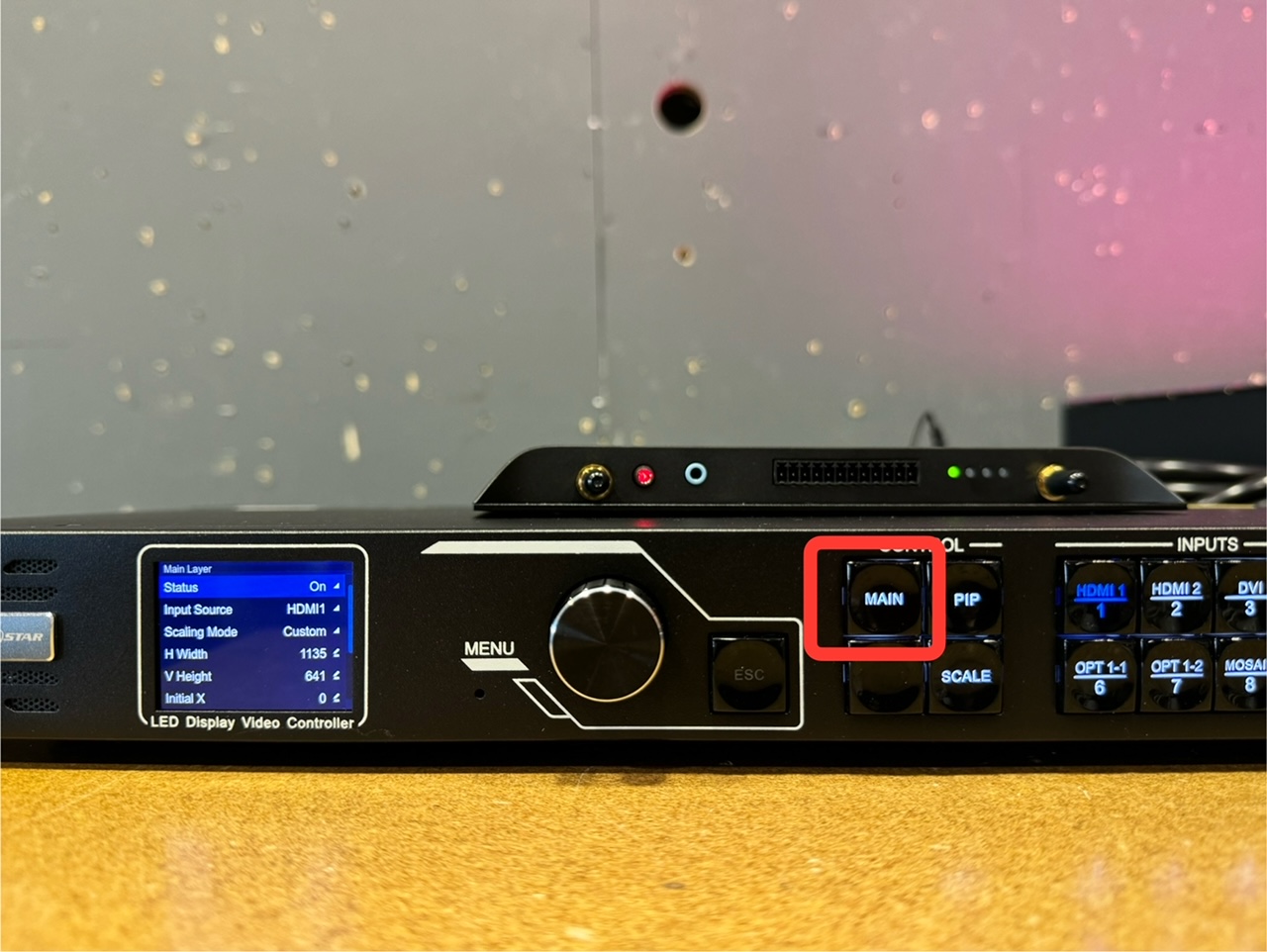

  3. To Set Novastar VX400 Layer Settings, press the "Main" Button to navigate to Layer Settings

  4. Please match the layer settings based on the V size using the "

    Layer Configuration Settings Reference" below.


Layer Configuration Settings Reference

  • 48" Digital V - Single Plane

H Width: 1135
V Height: 641

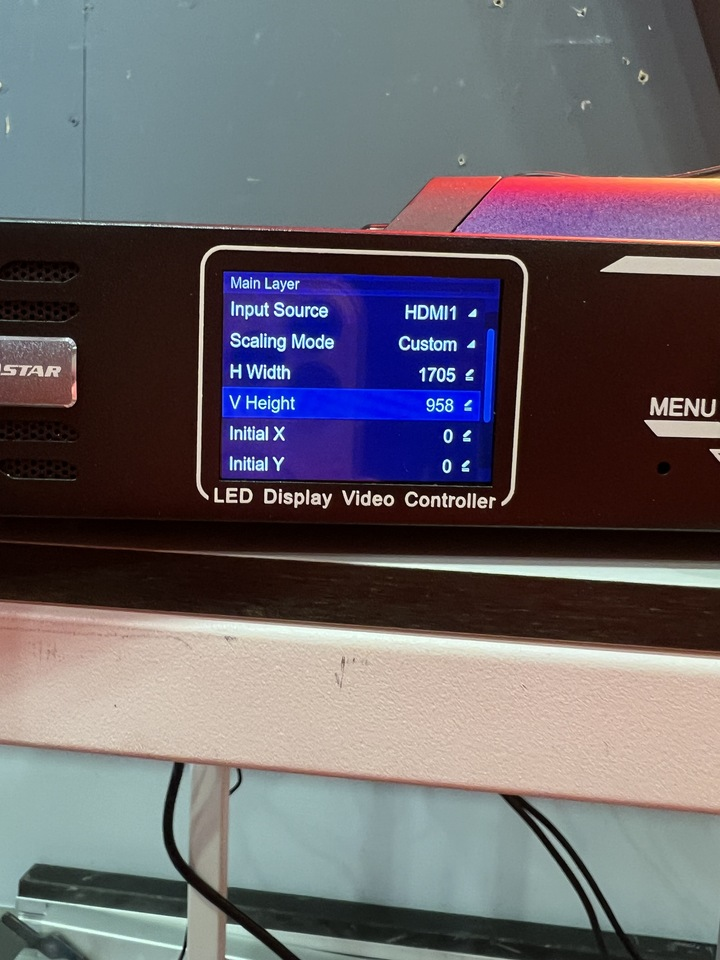

  • 72" Digital V - Single Plane

H Width: 1705
V Height: 958
