STEP 1: Check box for content.

Refer to the following to ensure you received all items included with the IBR200 hardware.

  • [1] Cradlepoint IBR200 router

  • [1] Power supply

  • [2] LTE antennas

  • [1] Wi-Fi antenna

  • [1] SIM door screw

  • [1] Getting Started reference sheet

  • [1] Safety, Regulatory, and Warranty guide



STEP 2: Open the SIM cover.

Remove the screw from the SIM slot cover and slide the cover to the right.



STEP 3: Insert an active 2FF-sized SIM.

Insert an activated 2FF-sized SIM card into the SIM slot (contacts down, notch in). The SIM card will click into place. Note: To remove, depress the SIM card.



STEP 4: Close and secure the SIM slot cover.

Slide the SIM cover to the left and replace the screw. Tighten the screw to secure the cover.



STEP 5: Attach the LTE cellular antennas.

Install the LTE cellular (paddle) antennas on the MAIN and AUX ports.

  • Hold the antenna straight and twist the base to thread onto the connector.

  • Tighten with fingers only (maximum torque not to exceed 4 in-lbs).

  • Do not over-tighten.

  • Once the router is mounted and powered on, angle the antennas for optimal signal reception.



STEP 6: Attach the Wi-Fi antenna.

Install the Wi-Fi antenna on the port marked 2.4/5GHz.

  • Hold the antenna straight and twist the base to thread onto the connector.

  • Tighten with fingers only (maximum torque not to exceed 4 in-lbs).

  • Do not over-tighten.

  • Once the router is mounted and powered on, angle the antennas for optimal signal reception.


STEP 7: Connect the Ethernet cable.

Connect the Ethernet cable to the port marked LAN on the back of the IBR200. Connect the other end to your cable modem.



STEP 8: Power up the router.

Insert the 4-pin end of the power source into the four-pin port on the router, ensuring appropriate alignment of pins as illustrated below.


  • Plug the adapter into an electrical socket.

  • Allow 1 minute for the router to run through its bootup sequence.

  • Refer to the Understanding LEDs section of this guide for more information about LED indicator status.



Step 9: Active the router in NetCloud Manager.

Activating your Cradlepoint router requires logging into your NetCloud Manager account. Refer to Getting Started with NetCloud Manager for more information.




Understanding LEDs


The IBR200 router uses LED lights on the front panel to communicate various status conditions. Use the table below to verify the status of your router after the 1-minute bootup cycle.

STATUS INDICATOR

BEHAVIOR


POWER: The Cradlepoint IBR200 must be powered using an approved 12 VDC power source.



  • No Light = Not receiving power. Check the power switch and the power source connection



  • Green = Powered on



  • Yellow = Attention is needed. Log into NetCloud Manager and use the Remote Connect menu to access the router's local UI to manage the alert.

    • Examples: NCOS is using default password, Wi-Fi is is using default PSK, endpoint is not registered in NetCloud manager


SIGNAL STRENGTH: LED bars indicate the active modem’s signal strength



  • No Light = Modem is not operating.



  • 4 Solid Bars = Strongest signal.



  • 1 Blinking Bar = Weakest signal (a blinking bar indicates half of a bar).



  • 4 Blinking Bars = SIM door is not installed, modem is off.


EMBEDDED MODEM: Indicates connection status for the embedded (internal) modem.



  • No Light = Modem is not connected.



  • Solid Green = Modem has established an active connection.



  • Blinking Green = Modem is connecting.



  • Solid Yellow = Modem is not active.



  • Blinking Yellow = Data connection error. No modem connection possible.



  • Blinking Red = Modem is in the process of resetting.


WI-FI: Indicates the Wi-Fi status.



  • No Light = Wi-Fi is not operating.



  • Blue = Wi-Fi is on and operating normally (2.4GHz and/or 5GHz)

OTHER

ADDITIONAL LED INDICATIONS



ETHERNET PORT LIGHTS: LEDs on either side of each Ethernet port on the backside of the endpoint indicating connection status.

  • Yellow = 10/100 Link/Activity



After Initial setup of Cradlepoint IBR200 you will need to log information into the Navori Deployment sheet. To make the process easier take a photo of the unique identifiers on the router, you can copy and paste info into Navori deployment sheet from photo. After unique identifier is determined in Navori for media player that is being paired with the router you will need to change the info in net cloud to reflect this info.

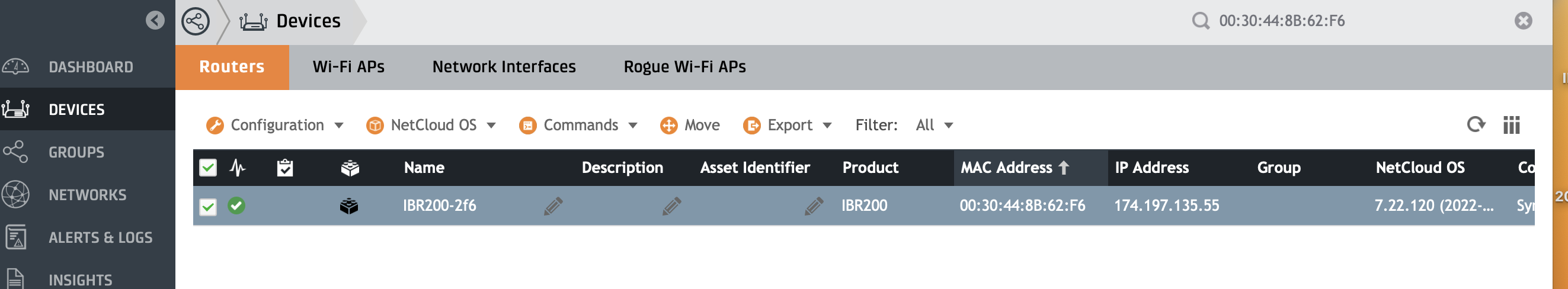

Find router in net cloud and move to assigned group. After moved to group the router will restart. Once router has rebooted you should be able to setup WIFI connectivity between router and media player. Go to settings-add network- (CMSduggal) type of security WPA/WPA2 PSK, password (DuggalCMSClient)
